600 Horsepower Snow Gas Engine - Page 8


Lower Gear

Installing the lower timing gear set in June 2009.

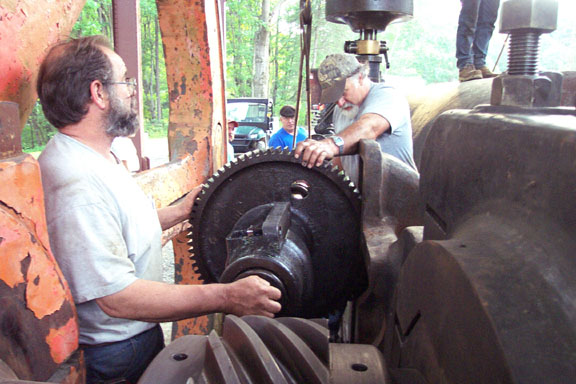

Upper Gear

Installing the upper timing gear which drives the side shaft in June 2009.

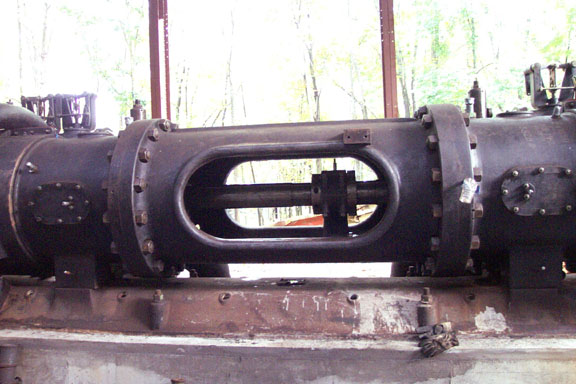

Cross Head

The center and tail crossheads were installed in September 2009.

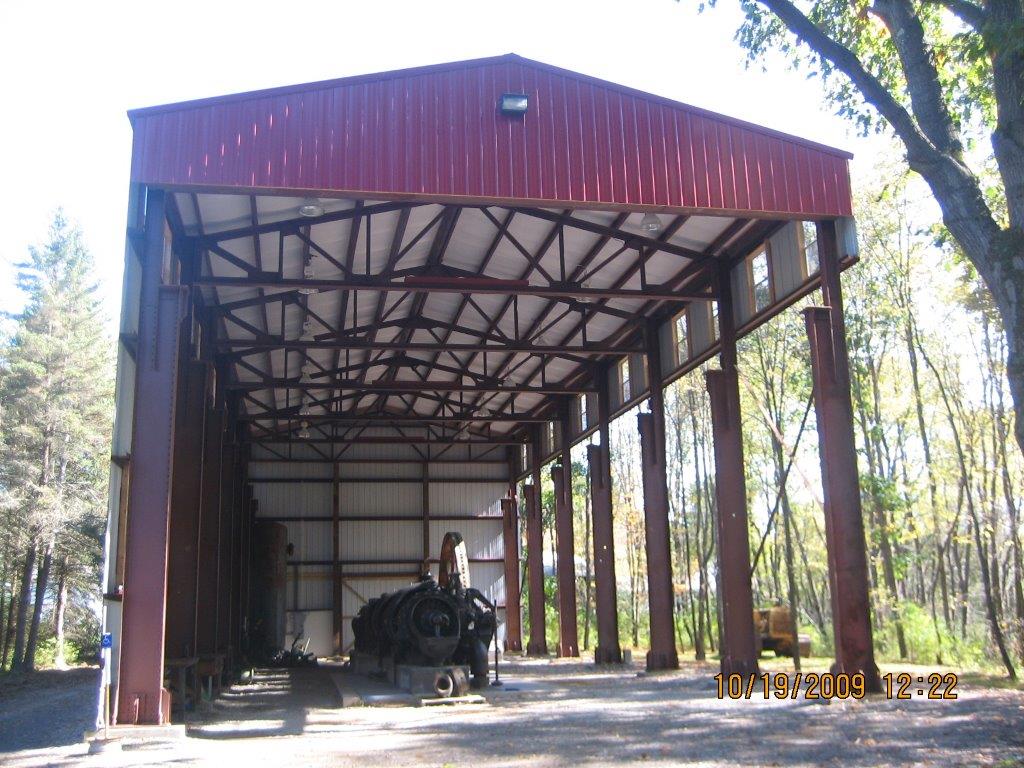

Much Progress October 2009

By October 2009, both the engine and the building showed the great progress made by the volunteers.

Engine Assembled

Once just a collection of parts, the Snow was starting to look like an engine again.

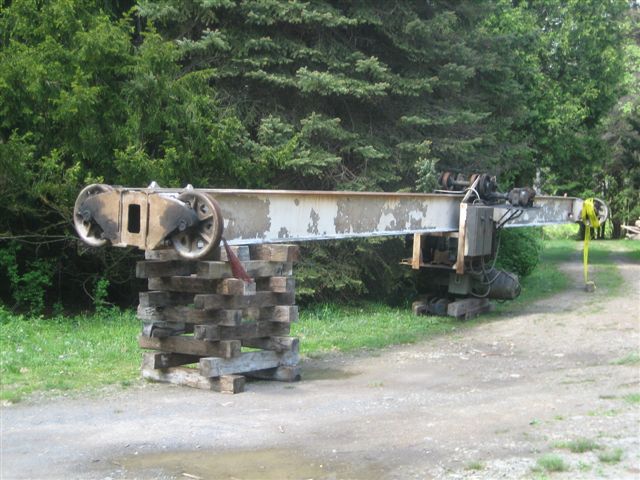

Bridge Crane

Stanton Dynamics donated a bridge crane for the Snow building.
