600 Horsepower Snow Gas Engine - Page 5


Snow Grating

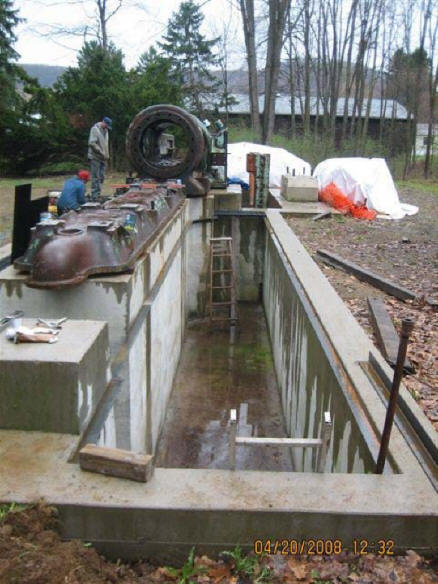

This photo gives a good perspective of the depth of the foundation.  The space betwen the  foundation pillar and the outside wall is necessary for piping runs.

Snow Grating

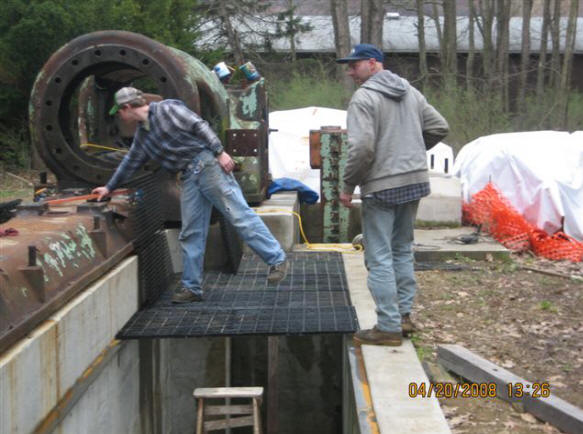

With angle iron installed for support, work began on placing grating around the engine.

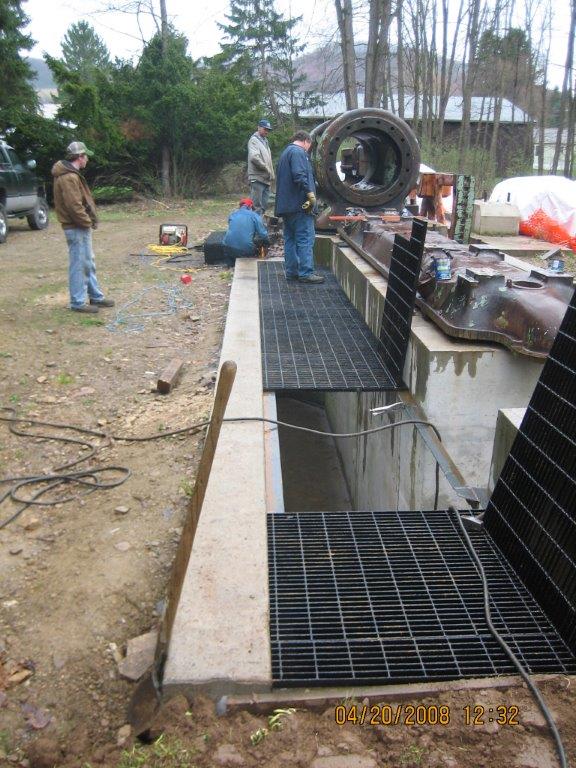

Grating Installed April 2008

The grating provides a solid platform for work on the engine while allowing access to piping and equipment to be installed below grade.

Snow Grating

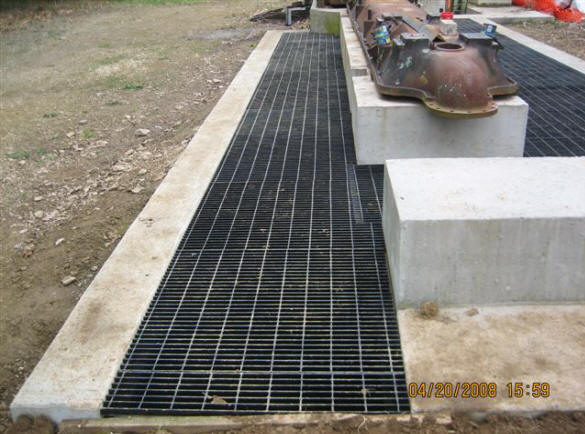

Grating on the north side of the foundation.  The engine's cylinder base plate is in place but not fastened down or grouted, yet.

Snow Grating

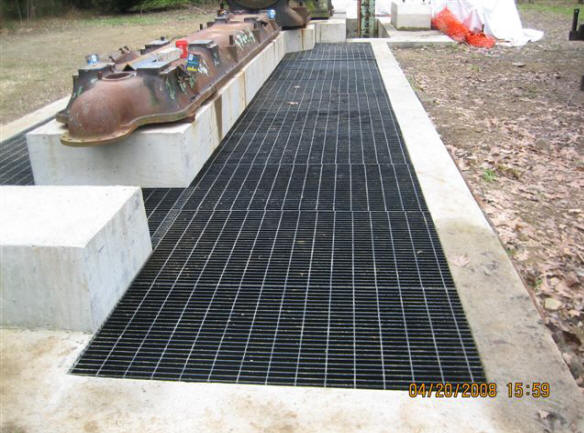

Grating on the south side of the foundation.

Snow Grating

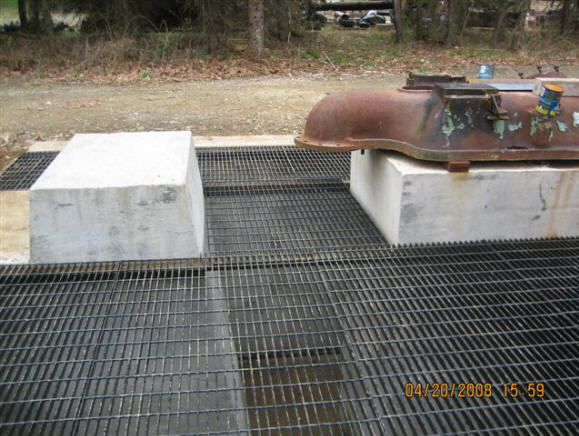

Grating at the front end of engine.  The small foundation pedestal at the left of the photo supports the "slipper" assembly at the rear of the engine.
