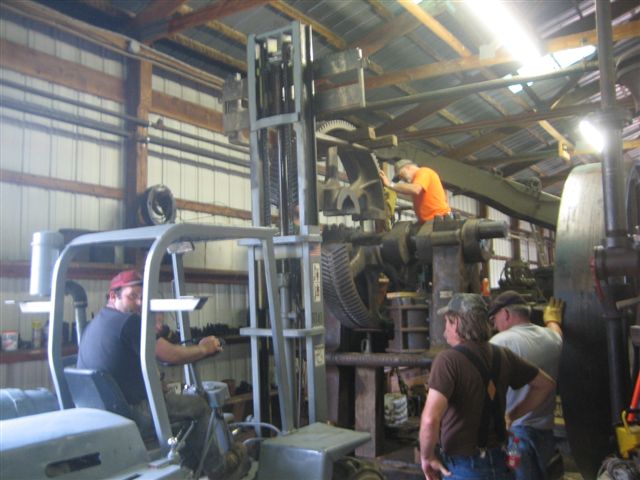

Installing the top half of the gear. Chris Austin on the forklift and Doug Fye doing the placing. It is now bolted to the shaft.

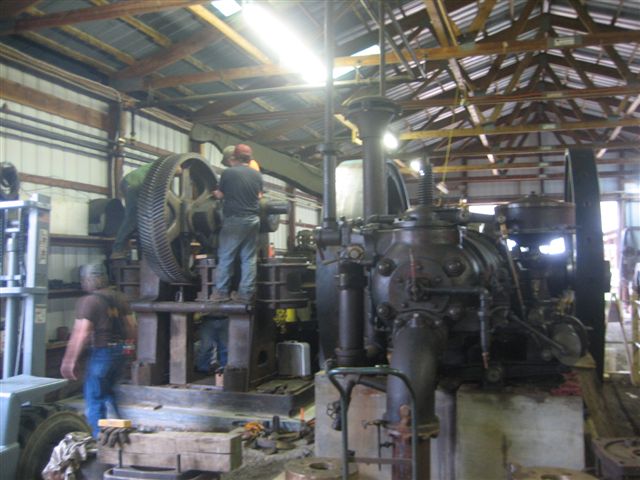

The pump awaiting the installation of the connecting rods and crossheads. It is very impressive.
The pump is now assembled and operating from the engine.

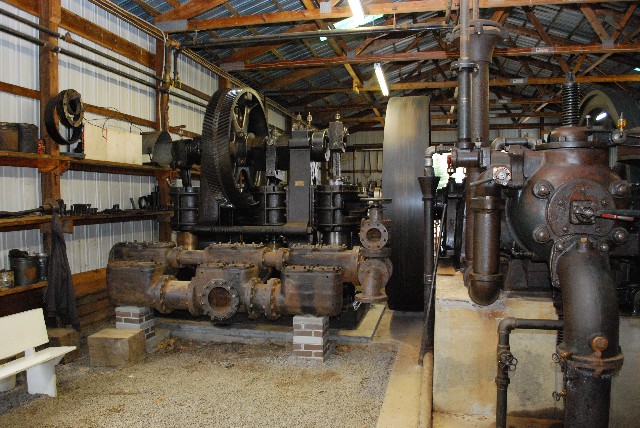

This view of the pump shows the pinion shaft from the engine, the herringbone reduction gearing, the crankshaft, and the connecting rods for the three pump plungers.
